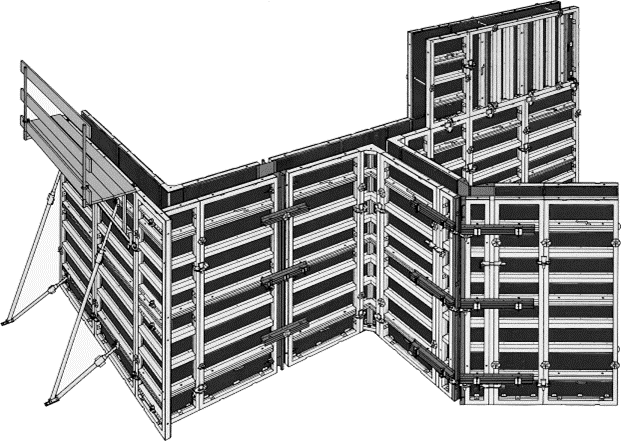

DMC is a heavy duty panel wall formwork system which is made from galvanised steel profile frame and uses film faced laminated 2 plywood sheeting for form face. It is a modular system with three heights (330cm, 270cm,135cm) and 7 widths (240cm,135cm, 90cm, 75cm,60cm, 45cm 30cm) with quick acting clamps for simple fast assembly.
DMC formwork is a flexible modular panel system which is suitable for civil and building projects alike. The clever modular components allow for maximum flexibility on site with a minimum of components.
The system is designed with safety in mind, providing secure working conditions for construction workers. With proper assembly and use of accessories, DMC provides a safe system of work.
The system is designed with safety in mind, providing secure working conditions for construction workers. With proper assembly and use of accessories, DMC provides a safe system of work.
DMC formwork is known for producing high-quality concrete finishes. The system allows for precise adjustments, ensuring that the final concrete structure meets the desired standards for smoothness and accuracy.
DMC formwork is extremely cost efficient and the long-term cost benefits arise from its reusability, speed of construction, and reduced labor requirements.
All the usual accessories are available such as hinged corners, stripping corners, single sided frames, crane assisted climbing frames and pouring platforms
| Article No. | Description | Weight |
|---|---|---|
| WC33240 | Panel 330X240 | 397kg |
| WC33135 | Panel 330x135 | 195kg |
| WC33900 | Panel 330x90 | 135kg |
| WC33750 | Panel 330x75 | 125kg |
| WC33600 | Panel 330x60 | 96kg |
| WC33450 | Panel 330x45 | 64kg |
| WC10101 | QAC | 4kg |
| WC10102 | MFC | 5kg |
| Article No. | Description | Weight |
|---|---|---|
| WC33240 | Panel 330X240 | 397kg |
| WC33135 | Panel 330x135 | 195kg |
| WC33900 | Panel 330x90 | 135kg |
| WC33750 | Panel 330x75 | 125kg |
| WC33600 | Panel 330x60 | 96kg |
| WC33450 | Panel 330x45 | 64kg |
| WC10101 | QAC | 4kg |
| WC10102 | MFC | 5kg |
